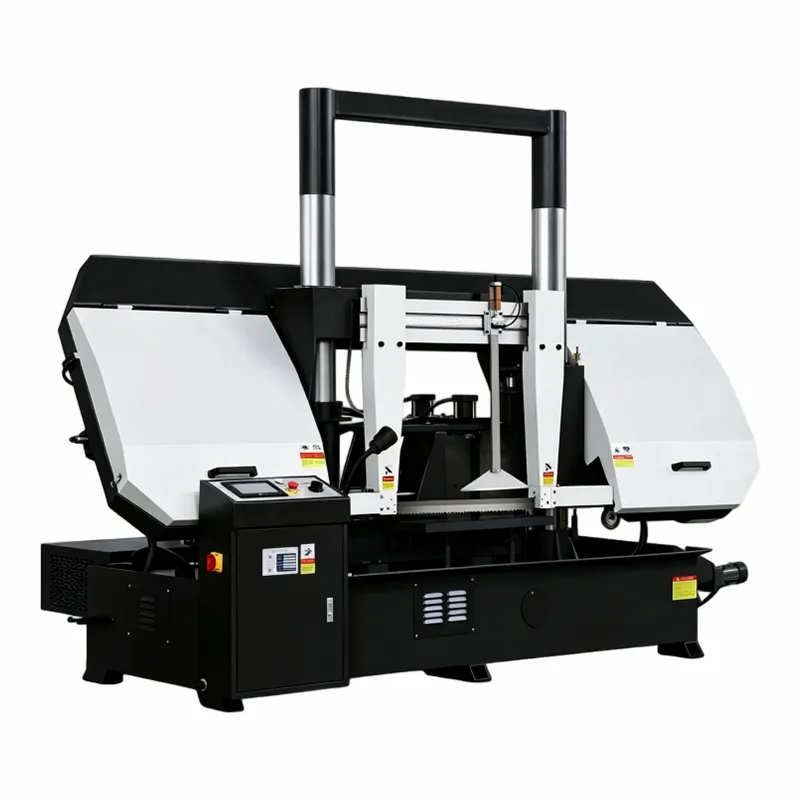

Automatic Horizontal Band Saw

GHS-4280 has a powerful high-performance PLC controller with an easy-to-operate 7 inch Colour Display Screen, it can automatically execute all stages of the material-cutting process. Operators can quickly input the cutting parameters within a short period of time, including lengths and quantities; Moreover, it supports saving up to 500 different programs all at once; these programmed instructions enable repeated processing on numerous individual work-pieces in sequence. A servo-driven hydraulic-automatic-feed System can achieve an extension Length Of up to 600 mm At a high level And A precision Within 15 millimeters. Also has materials shortage detection sensors, blade-break warning devices and automatic-chip-removal systems that can immediately halt production operations when shortages occur to prevent equipment damage and material waste; supports semi-autonomous lights-out work mode for improving operational safety and efficiency.

An 7.5kW high-efficiency main motor, a 2.25KW hydraulic motor and a 0.125kw coolant pump have been combined to ensure continuous power supply is available in the processing of thin-walled, hard-material pieces with sufficient thickness. There are three Optional saw-blade speeds at 27, 45 and 69 m/min to meet different working conditions; For this reason, they can be adjusted flexibly according to the type of materials and thicknesses when operating them. A 8820 x 54x1.6 mm-sized saw blade, made from high-quality bimetallic alloy steel after precise heat treatment and tooth grinding for enhanced sharpness, wear-resistance, and service life. There is an automatic, semi-automatic operation mode for processing the product shape of different sizes at one time or multiple times respectively.

To enhance stability and precision in the operation of a double-column gantry system under strong loads, such as high-speed,. A hydraulic double-vice locking device equipped with a variable-pressure adjustment module for securing one or more work-pieces securely to avoid displacement caused by vibration during processing and ensure burr-free surface cuts. Saw blade guide contains large amounts of high hardness carbide plates and oversize roller bearings to provide perfect blade guidance, reduce wear, extend service life of saw blades, etc.

GHS-4280 has implemented a user-friendly Design with a convenient Color touch Screen Control Panel, so that the Parameters Set-up is More Intuitive And easier for New Operators To learn Quickly. It has many kinds of safety guard measures such as emergency stops, overloading warnings, guards around the machine body, blade-breaking alarms and quick-release mechanisms to ensure that it meets global industry norms for safe operation. An automatic coolant supply system with a large capacity can continuously spray it over the saw blade and work-piece to reduce friction and wear, lower temperatures of the saw blade to extend its lifespan. The mechanical saw brush continuously clears chips from under the blade to prevent it from becoming obstructed;
