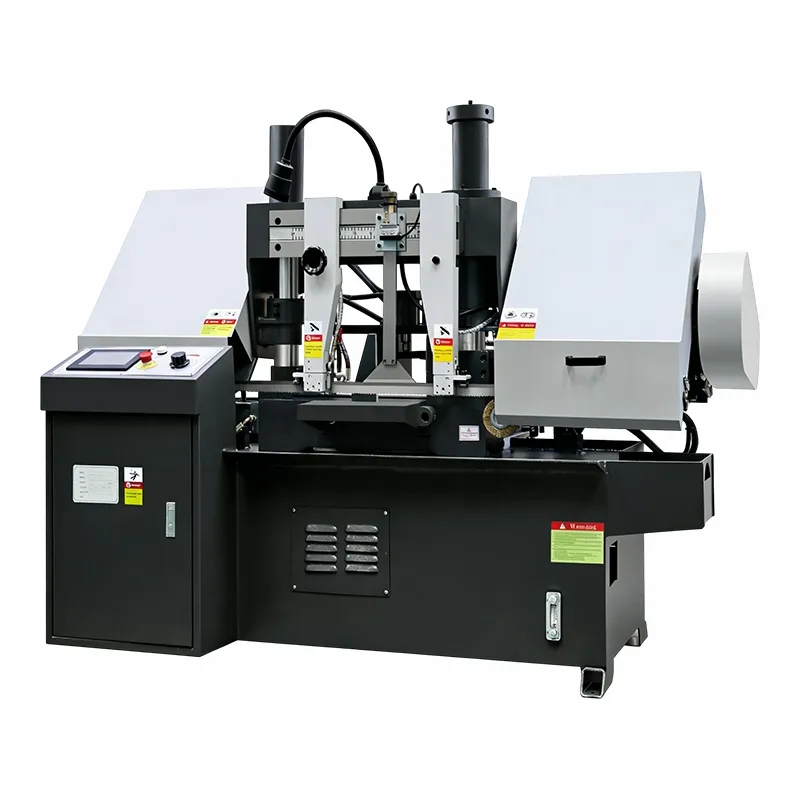

Industrial Band Saw Machine

GHS-4260 is equipped with a strong performance of PLC control system, as well as a user-friendly colour touchscreen for full-automatic operation throughout the cutting process. Operators are easy to enter cutting parameters, including length and quantity, and speed; The machine stores a maximum of 30 sets of cutting program that can be repeatedly used in large-batch production; The labour force has been reduced greatly. Optional A servo-driven hydraulic automatic-loading equipment with a maximum handling length of 500 mm; Precision meets the ±0.20 mm requirement standard and ensures high precision in material transportation. In addition, it has built-in materials shortcoming sensing modules and blade-breaking warning functions that can stop work in time to prevent equipment accidents from occurring and waste of raw materials.

Using the driving mechanism of a 5.5kw-high-efficiency prime mover, along with a hydraulically drive 1.5kw motor that is suitable to perform heavy and hard metal working at any time smoothly. There are three Optional saw blade speeds per minute range at 27m/min, 45m/min, and 69m/min; This design is more versatile in terms of metal types to be processed or their hard-to-cut condition changes. A 6640×67×1.6mm saw blade is manufactured from a high-quality bimetallic alloy steel component after precise heat treatment and finish-grounding to enhance its cutting edge-sharpness, wear resistance, etc., thereby increasing the service lifetime of the product. Two kinds of operations: Automatic mode and Semi-Automatic Mode; Can process many tasks, such as large or Small size objects at different scales, etc.

Strengthened Two-axial Gantry Structure was used to ensure stable vertical Positioning of the saw frame along Precise Linear Guides, reducing vibration caused by heavy-duty Cutting with its help. A hydraulic dual-locking clamping device can adjust its grip force as needed and be used with different shapes of the parts. There are high-strength carbide plates and large-overlarge roller bearings in the saw blade guide that provide excellent blade positioning, reduce wear on blades, and extend their service lives.

GHS-4260 designs in accordance with the most recent safety technical management standards for hazardous chemicals stored in tanks to offer a safer, easier-to-use Tank Inspection Solution. Equipped with various safety protection functions, such as emergency stop buttons, overload protection, safety guards, blade-break detection sensors to meet the requirements of high-standard International Industry's operating Safety Conditions. An automatic cooling device that continuously sprays coolant onto the saw blade and work-piece to reduce friction between them; To lower temperature-rise speed of blade; To increase life-span of saw-blade. The mechanical-saw-brush can continuously clear the debris ahead of the blade and still work well for removal. Low-level workbench Design can be used to load or unload heavy objects; the size is reasonable, and installing it in a large workshop would meet this requirement.
