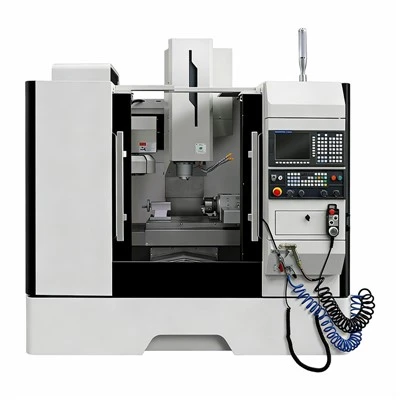

3 Axis Vertical Machining Center

VMC-1165 uses a complete cast iron bed ; Its internals have dense internal ribs after undergoing dual artificial ageing processes to remove all internal stresses completely. To reduce vibrations and deformations caused by high-speed cutting and heavy-load work-pieces to achieve stable operations. A Large spindle-Head structure, with a thick Shell and strengthened bearing seat, can increase the Structural Strength; This design is suited to complete deep-cutting, high-torque-milling processes or Materials processing Grades that are hard and tough. A frequency-modulated and voltage-rise control speed-regulating spindle has therefore been chosen to ensure smooth operation under variable load conditions and good stability at both high and low speeds without any dust or other foreign objects contaminating it during work.

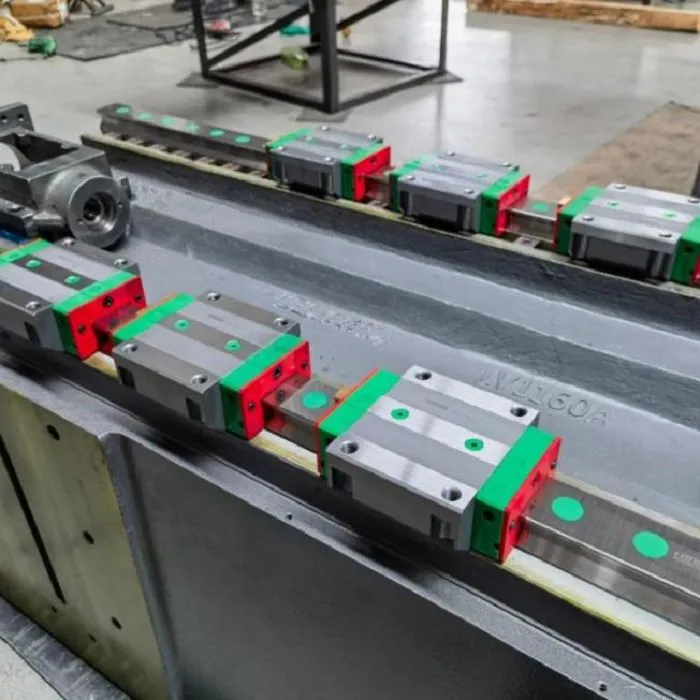

High-precision C3-grade ball screws and RGH65 linear guides with preloading treatment are used for three-axis motion; the position error is less than or equal to ±0.006/300mm, the repeatability positioning error is within ±0.004mm range. BT40 spindle driven by a 15kw AC servo-motor has an extremely small run-out(\<=0.2*), and powerful cutting-torque; It ensures the even uniform Surface-finish ,and dimensional-accuracy for very Large Work -pieces . Optional a spindle-cooling system and added an intelligent thermal-compensation function; Continuously monitored the changes in temperature; Then made corresponding adjustment according to this data to eliminate the influence caused by persistent heat-source-Location Differences on structural Deformation.

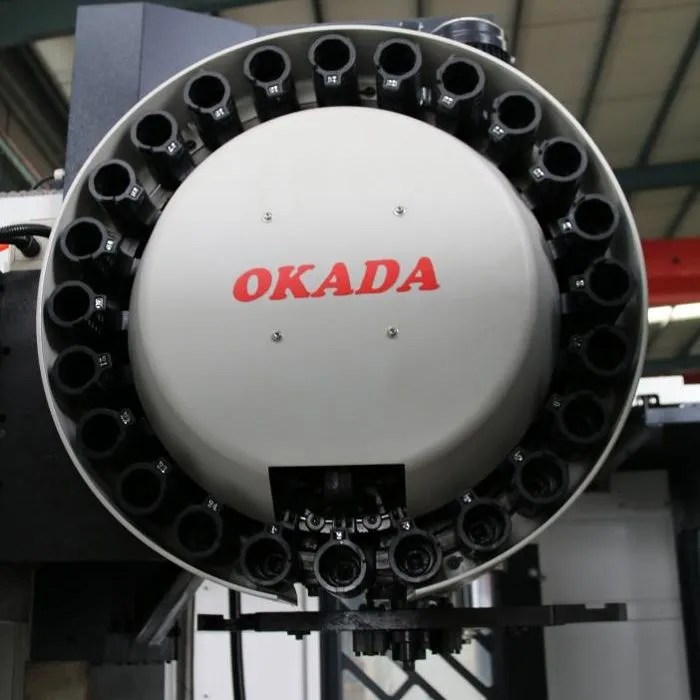

VMC-1165 has a GSK25i CNC system, and there is also an optional Large-Screen Size of 10 Inches that improves the operator's convenience; it can simulate programs, have real-time fault alarm display function, outside-offline-program capability so as to reduce manpower costs. A 24-station cross-over-type ATC system can complete tool change in 4.5 s to shorten Unprocessed time, increase productivity accordingly. At present, the operating modes include full automation, partial automation and manual operation; There is also a dedicated centralized automatic- oil-Filling Device with timer and oil-level-monitoring functions to provide essential fluids regularly for important parts. X/Y/Z axis's maximum speed to achieve the shortest processing time for a larger batch size.

A split type of electrical cabinet is used that can dissipate heat independently to avoid thermal accumulation and maintain stable performance of the electrical equipment under tough conditions. Optional a large power-chain type chip conveyor belt with sufficient capacity for rapid extraction of chips to prevent them from accumulating or making the workspace dirty. Equipped with various safety Protection devices such as emergency stop Buttons, spindle Overload protection, Tool Collision prevention, and a fully enclosed protective Cover to ensure the Safety of operators and prevent Chip splashing. A detachable manual pulse generator and a variable-operating-panel increase the convenience of use for different people.
